ABOUT DEVICE
This tester is operated through toggle switches and can test truck trailers, light vehicle trailers, interlink trailers, and caravans. It can only be connected on an external DC 12/24 volt power but has the same testing functions as the Professional trailer light tester. Compact and space-efficient, it can easily be fitted into a small toolbox alongside your other essential equipment.
Device Features
Test the electrical tow plugs (round 7-pin), wiring, and lights for all types of trailers and caravans.
Tests are carried out through toggle switches.
Testing circuits are protected by a standard automotive blade fuse (7.5 A). The fuse holder is situated next to the trailer socket on the tester.
The tester can operate using external 12 or 24-volt DC power.

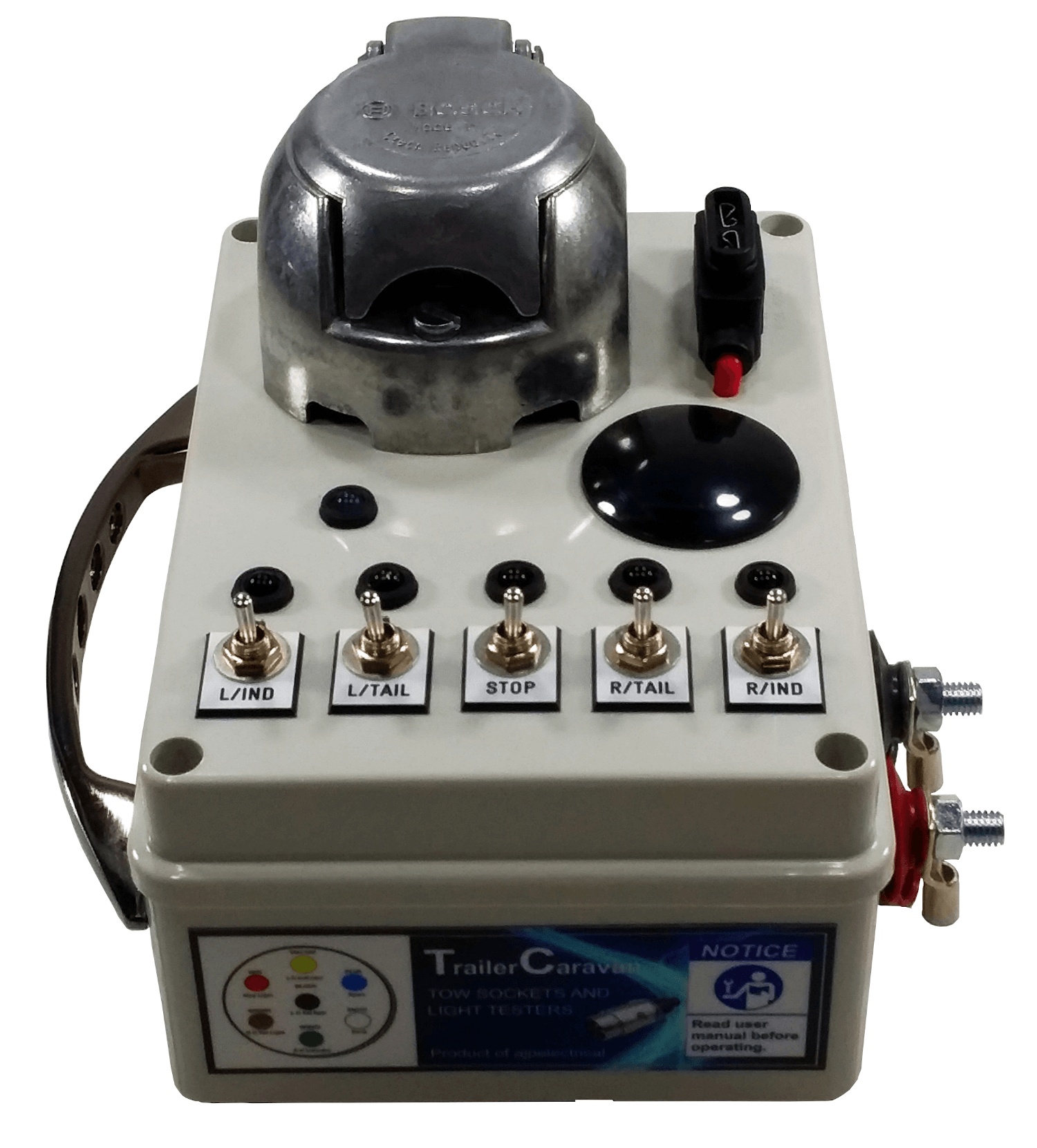

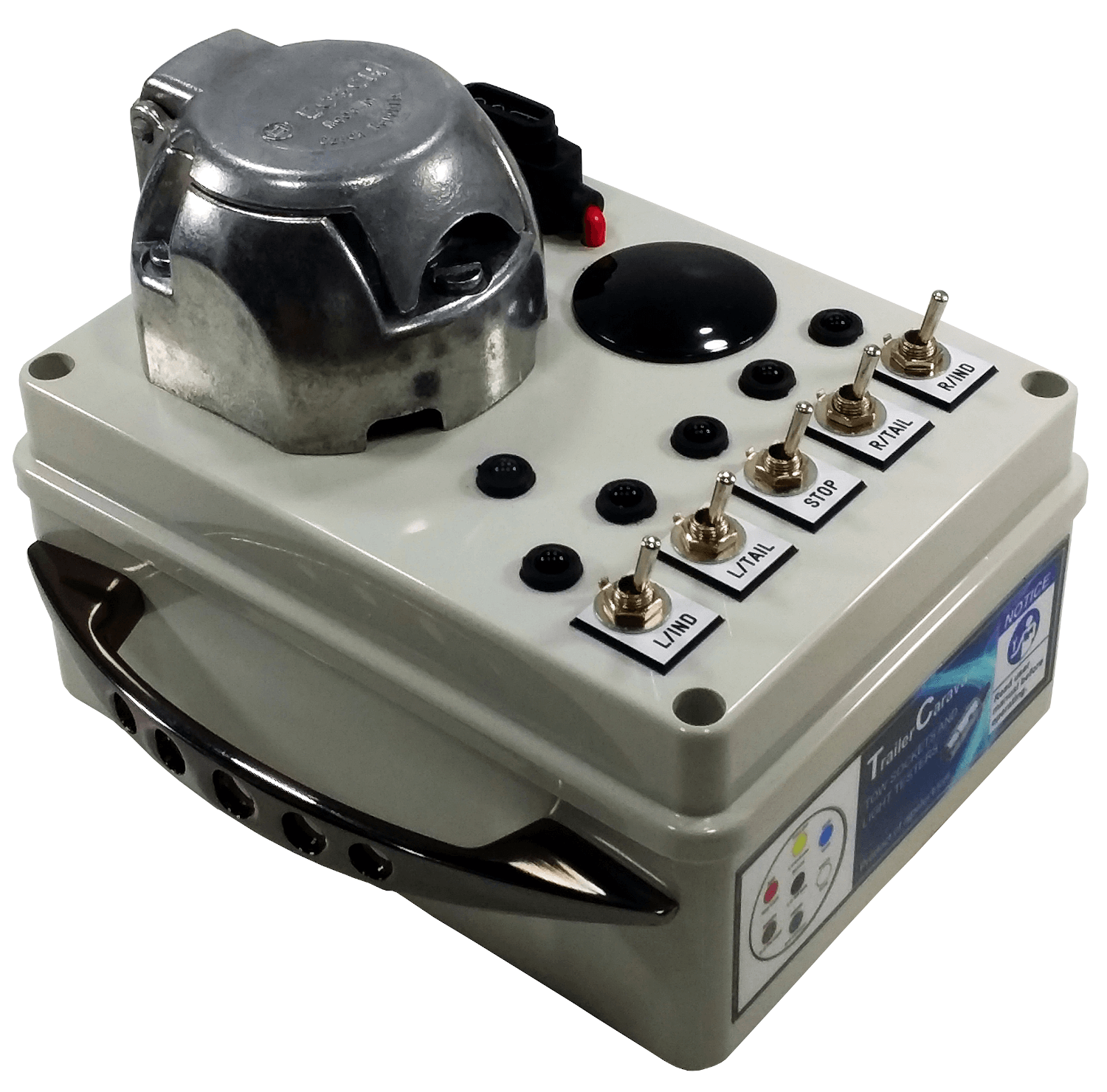

Features a side handle for easy carrying.
TECHNICAL SPECIFICATIONS:
Power input voltage: 12 VDC or 24 VDC
Power output voltage: 12 VDC or 24 VDC
Current output maximum: 20 A
Testing Features
Check the wiring circuit standard (SABS).
Check the auxiliary wire connection.
Test 12-volt and 24-volt standard light globes.
Test 12-volt and 24-volt LED lights.
Test the stop light wiring and light bulbs, or LEDs.
Test the left-hand tail light wiring and light bulbs, or LEDs.
Test the right-hand tail light wiring and light bulbs, or LEDs.
Test the left-hand indicator wiring and light bulbs, or LEDs.
Test the right-hand indicator wiring and light bulbs, or LEDs.
Perform a load test on the earth/ground wire.
Earth/ground wire test: the tester will immediately indicate when there is no earth/ground connection. It will also show a swapped earth/ground wire between light circuits or on the auxiliary circuit.
Short circuit test: the easily replaceable fuse on the tester will blow when a short circuit occurs on wires, globes, globe fittings, and damaged plugs or sockets. Refer to the user guide to learn how to safely and adequately test for shorts using this tester.

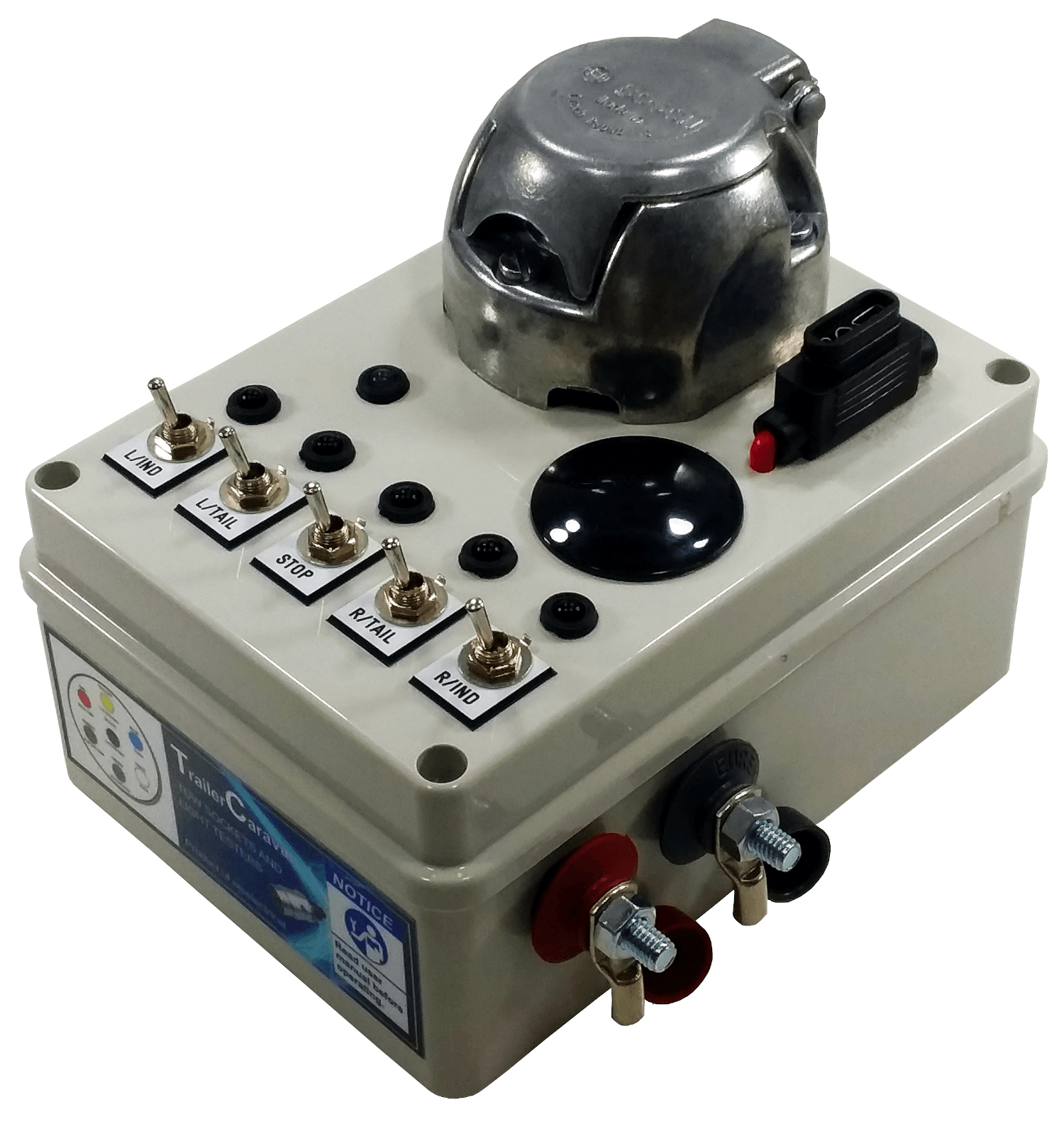

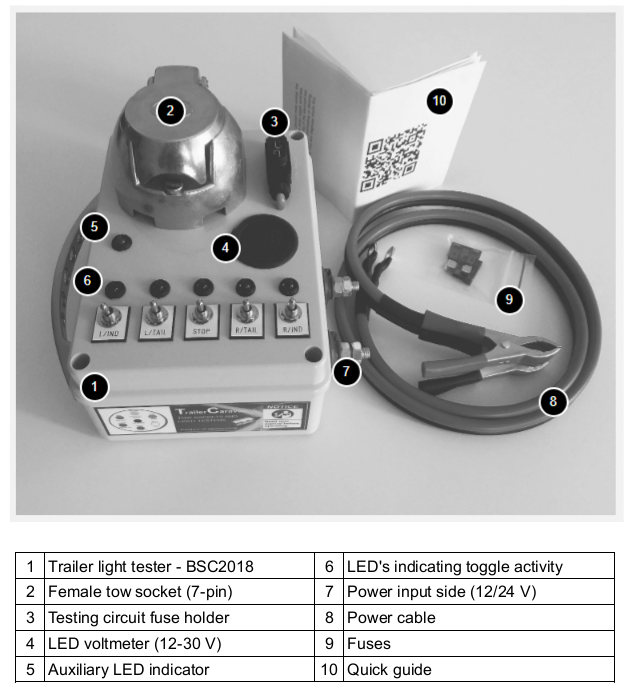

Box Contents

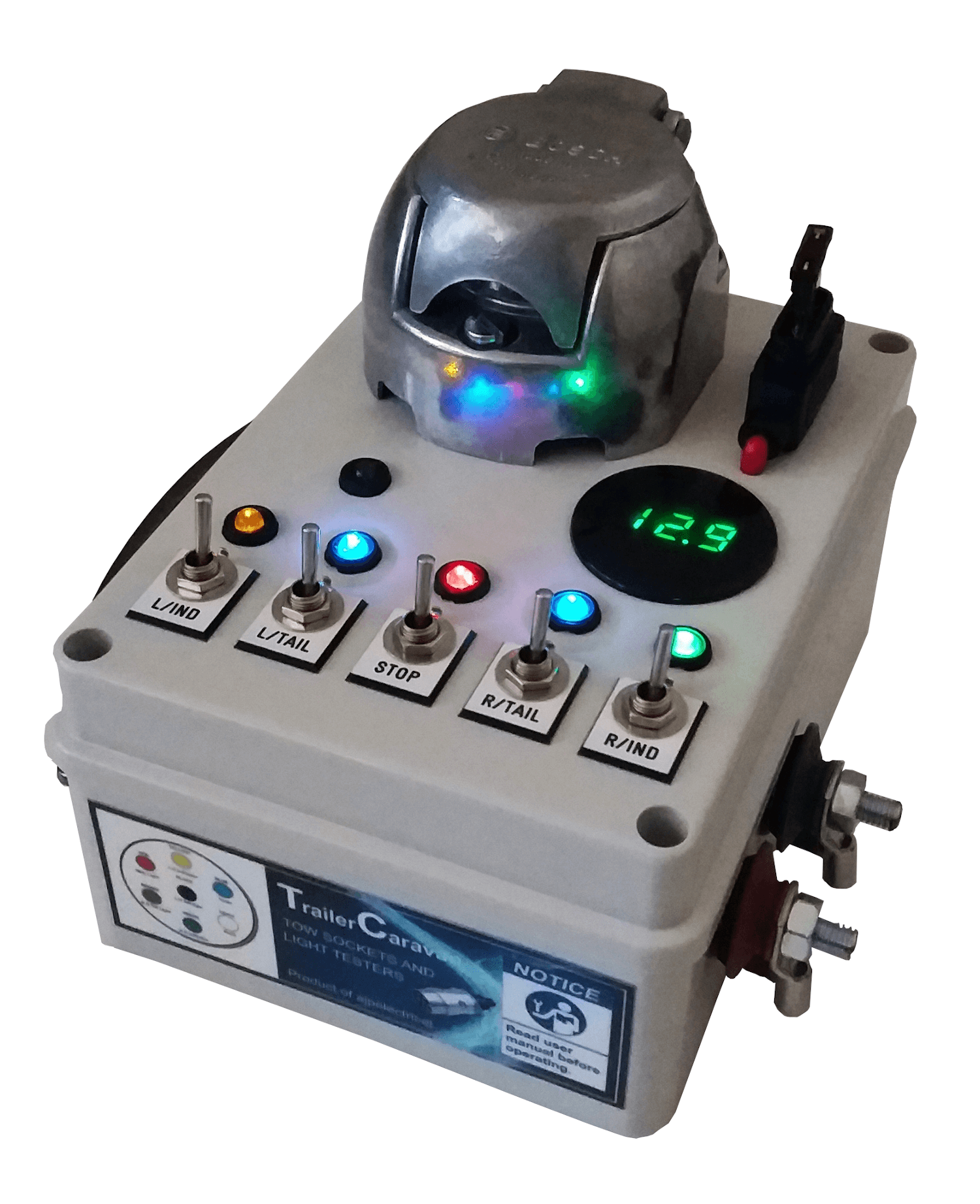

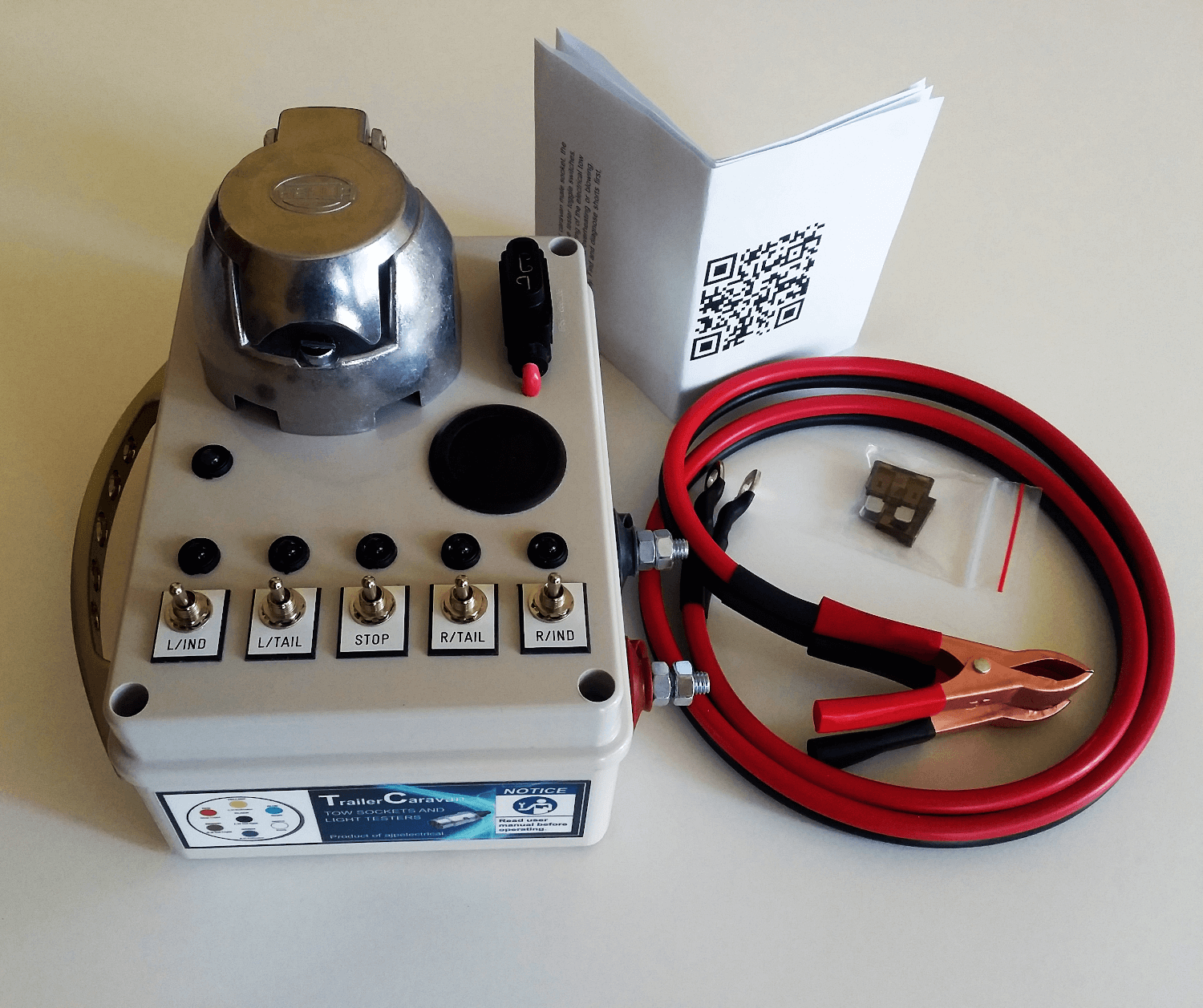

Basic Trailer Light Tester
Power Cable
Fuses 7.5 Ampere
Quick Guide
Device & Packaging Measurements
DEVICE DIMENSIONS AND WEIGHT:
Length: 150 mm
Width: 160 mm
Height: 123 mm
Weight: 0.7 kg
SHIPPING BOX DIMENSIONS AND WEIGHT:
Length: 260 mm
Width: 160 mm
Height: 170 mm
Weight: 1.5 kg
