ABOUT DEVICE

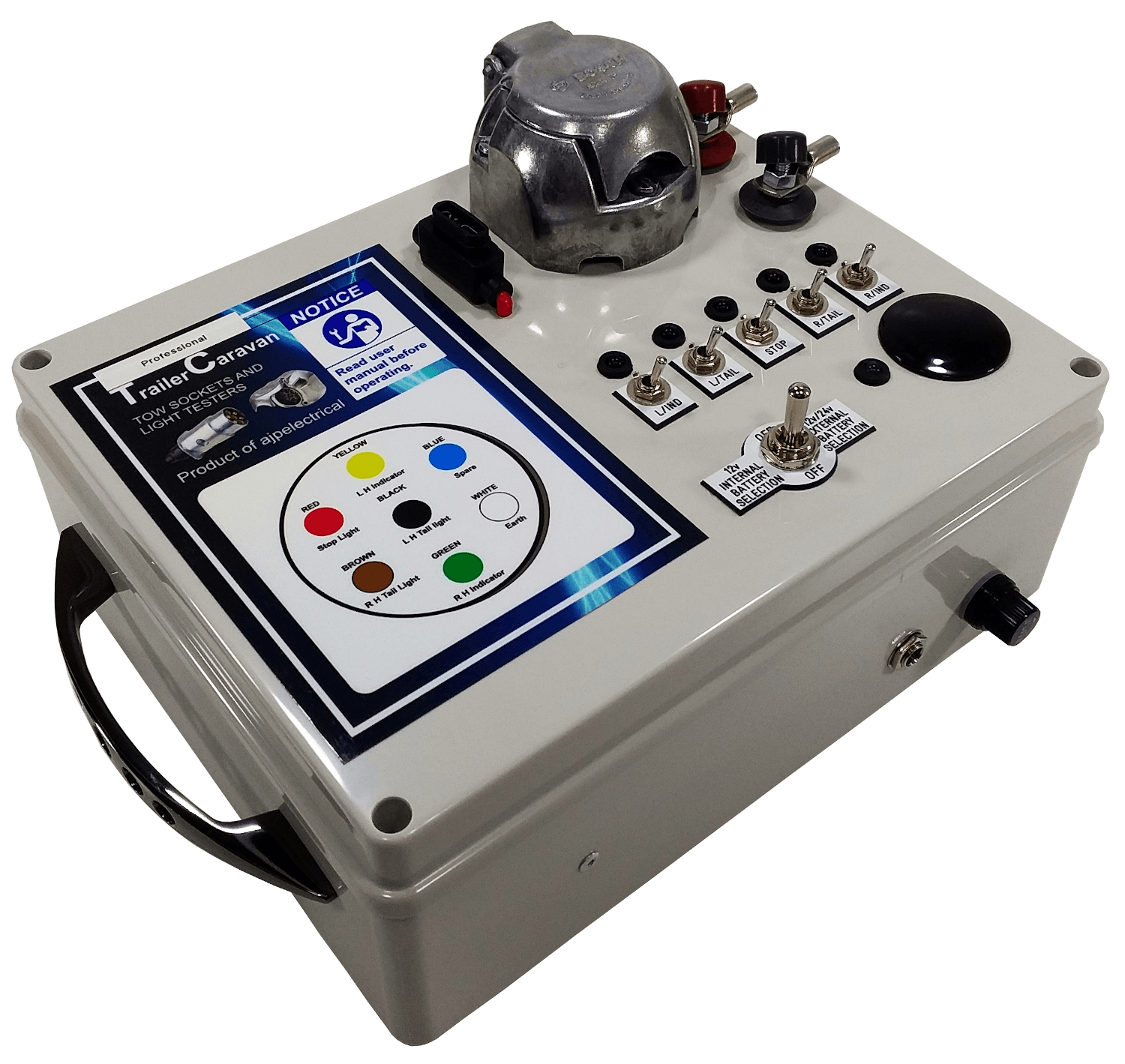

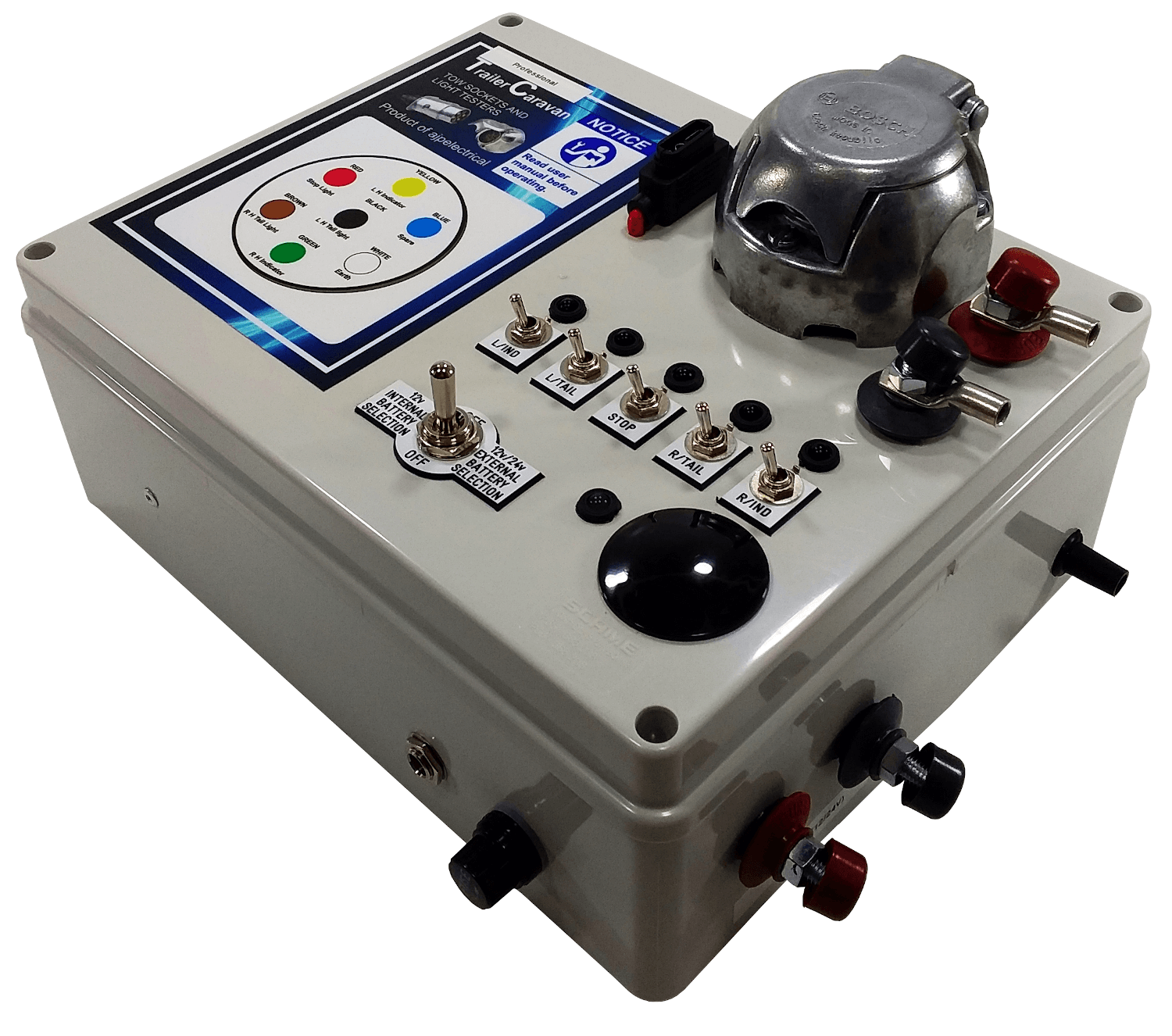

This tester is operated through toggle switches and can test truck trailers, light vehicle trailers, interlink trailers, and caravans. It comes with a strong internal 12v7ah battery, and a fully automatic charger. The tester can also connect to any external DC 12/24 volt power. This tester is still the most popular trailer light testing tool in
South-Africa.
Device Features

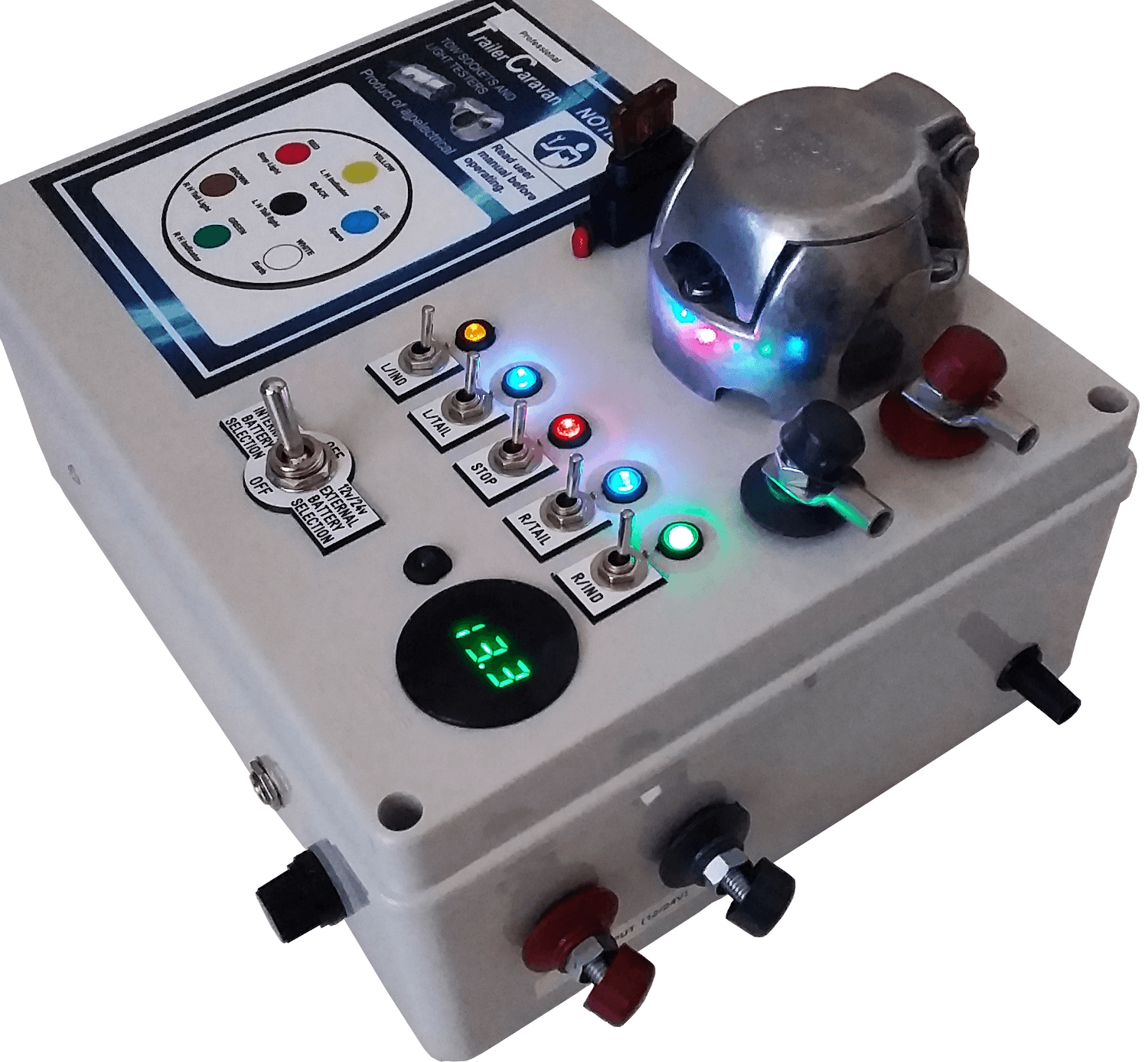

Test the electrical tow plugs (round 7-pin), wiring, and lights for all types of trailers and caravans.
Tests are carried out through toggle switches.
Testing circuits are protected by a standard automotive blade fuse (7.5 A). The fuse holder is situated next to the trailer socket on the tester.
The 12-volt, 7.2-Ah battery is pre-installed and ready for immediate use. To ensure optimal performance, keep it charged at all times, whether you are in the workshop or on the job site. The battery is charged using a fully automatic charger.
The tester can operate using external 12 or 24-volt DC power.
Fuse-protected output terminals (12/24 V) are situated on the tester's side.
Features a side handle for easy carrying.
TECHNICAL SPECIFICATIONS:
Power input voltage: 12 VDC or 24 VDC
Power output voltage: 12 VDC or 24 VDC
Current output maximum: 20 A
Testing Features
Check the wiring circuit standard (SABS).
Check the auxiliary wire connection.
Test 12-volt and 24-volt standard light globes.
Test 12-volt and 24-volt LED lights.
Test the stop light wiring and light bulbs, or LEDs.
Test the left-hand tail light wiring and light bulbs, or LEDs.
Test the right-hand tail light wiring and light bulbs, or LEDs.
Test the left-hand indicator wiring and light bulbs, or LEDs.
Test the right-hand indicator wiring and light bulbs, or LEDs.
Perform a load test on the earth/ground wire.
Earth/ground wire test: the tester will immediately indicate when there is no earth/ground connection. It will also show a swapped earth/ground wire between light circuits or on the auxiliary circuit.
Short circuit test: the easily replaceable fuse on the tester will blow when a short circuit occurs on wires, globes, globe fittings, and damaged plugs or sockets. Refer to the user guide to learn how to safely and adequately test for shorts using this tester.

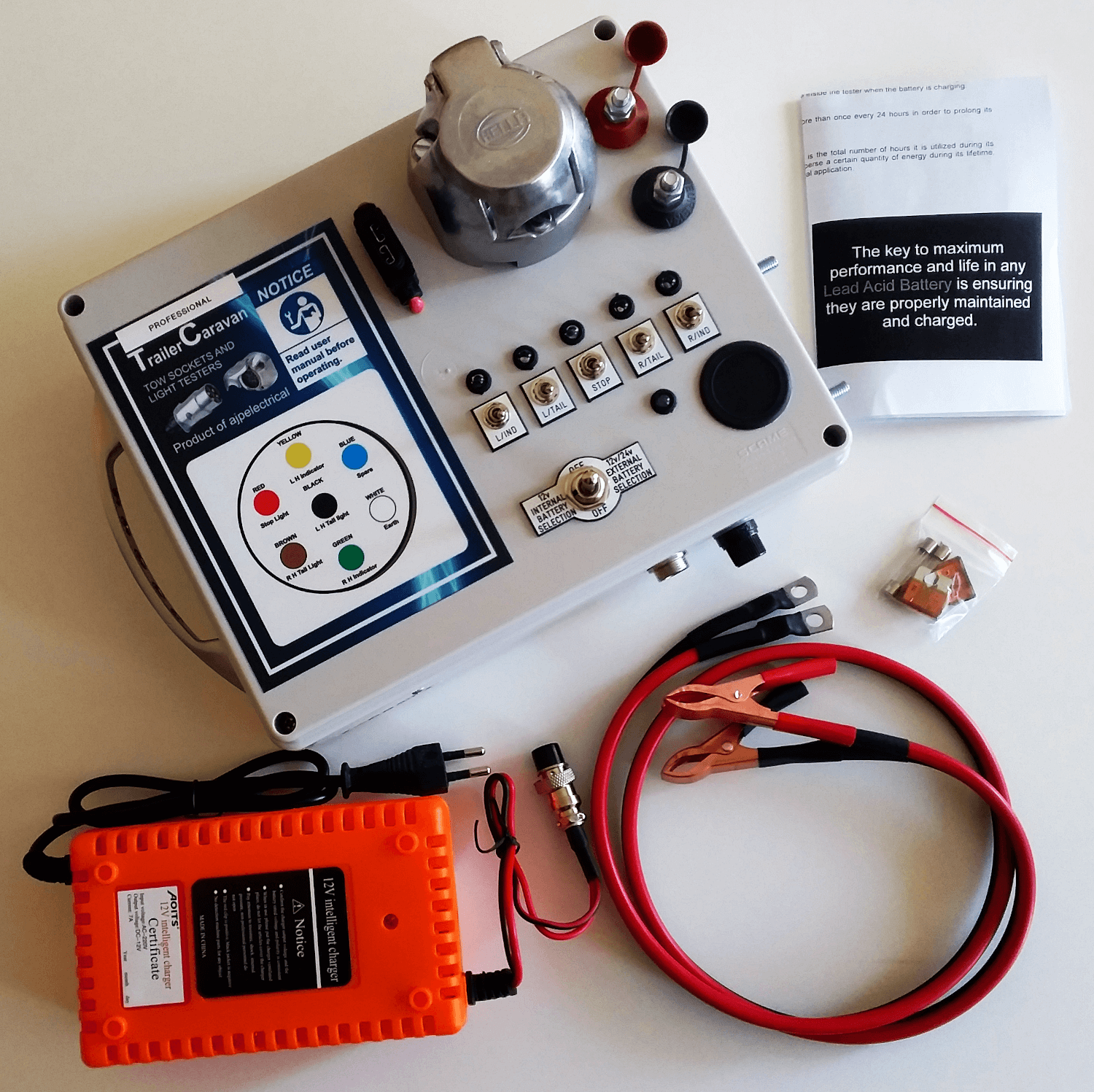

Box Contents

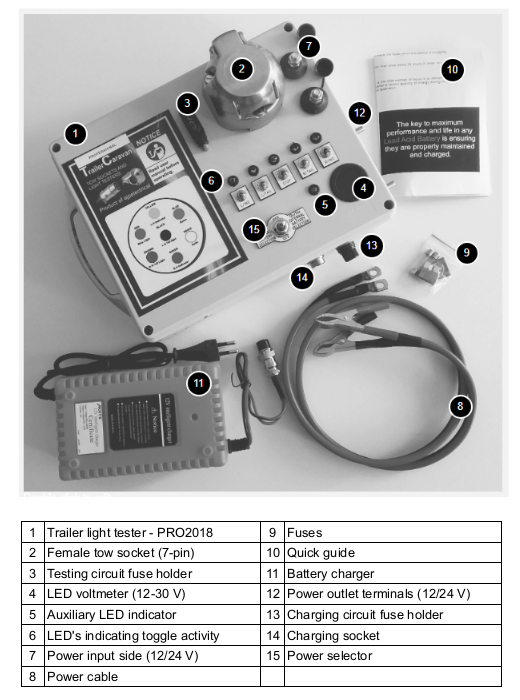

Professional Trailer Light Tester
Rechargeable Battery Forbatt 12 V, 7.2 Ah
Fully Automatic Charger (12 V, 7 A)
Power Cable
Fuses 7.5 Ampere
Fuses 10 Ampere
Quick Guide
Device & Packaging Measurements
DEVICE DIMENSIONS AND WEIGHT:
Length: 269 mm
Width: 212 mm
Height: 141 mm
Weight: 3.7 kg
SHIPPING BOX DIMENSIONS AND WEIGHT:
Length: 300 mm
Width: 230 mm
Height: 180 mm
Weight: 4.5 kg
