ABOUT DEVICE

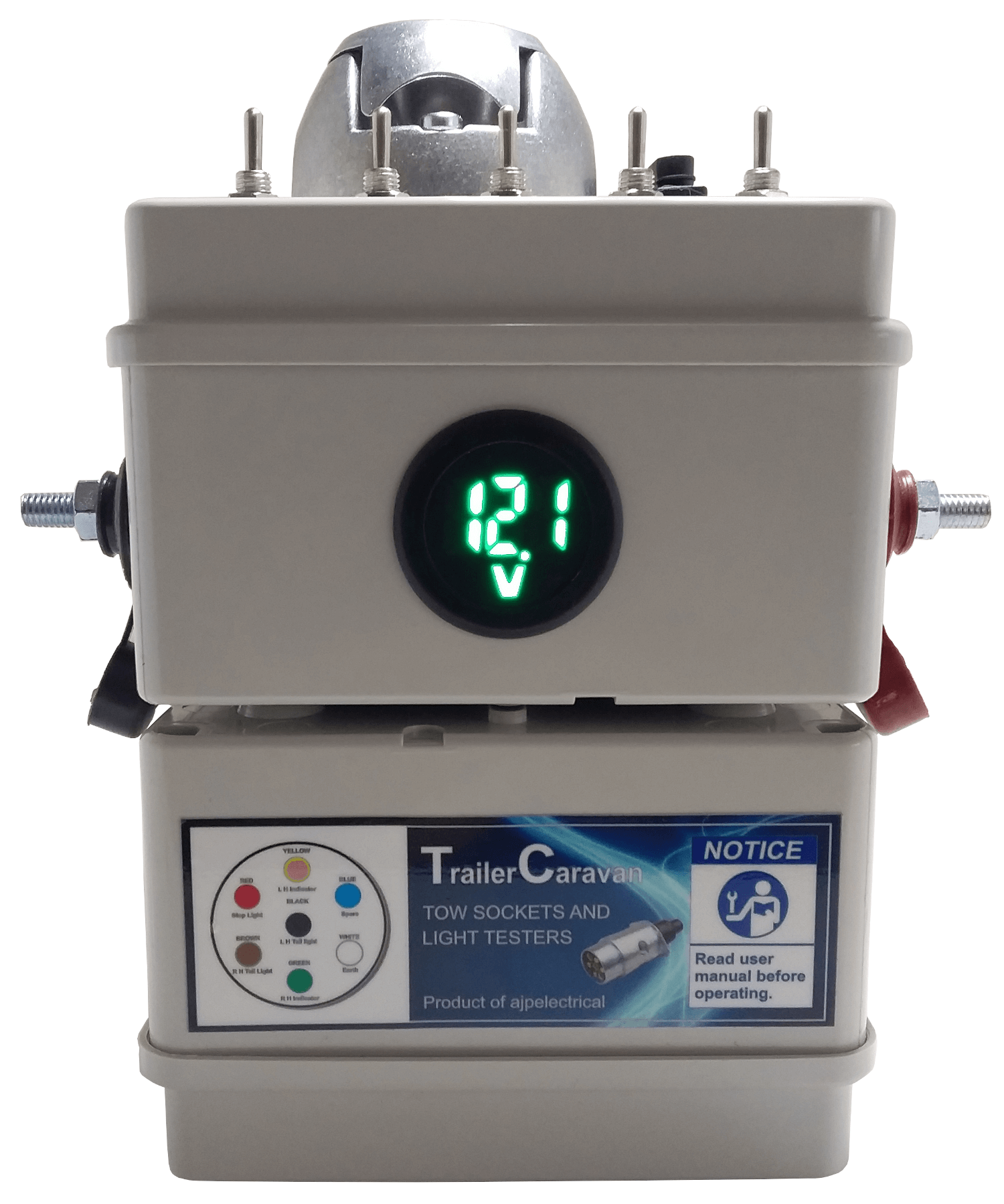

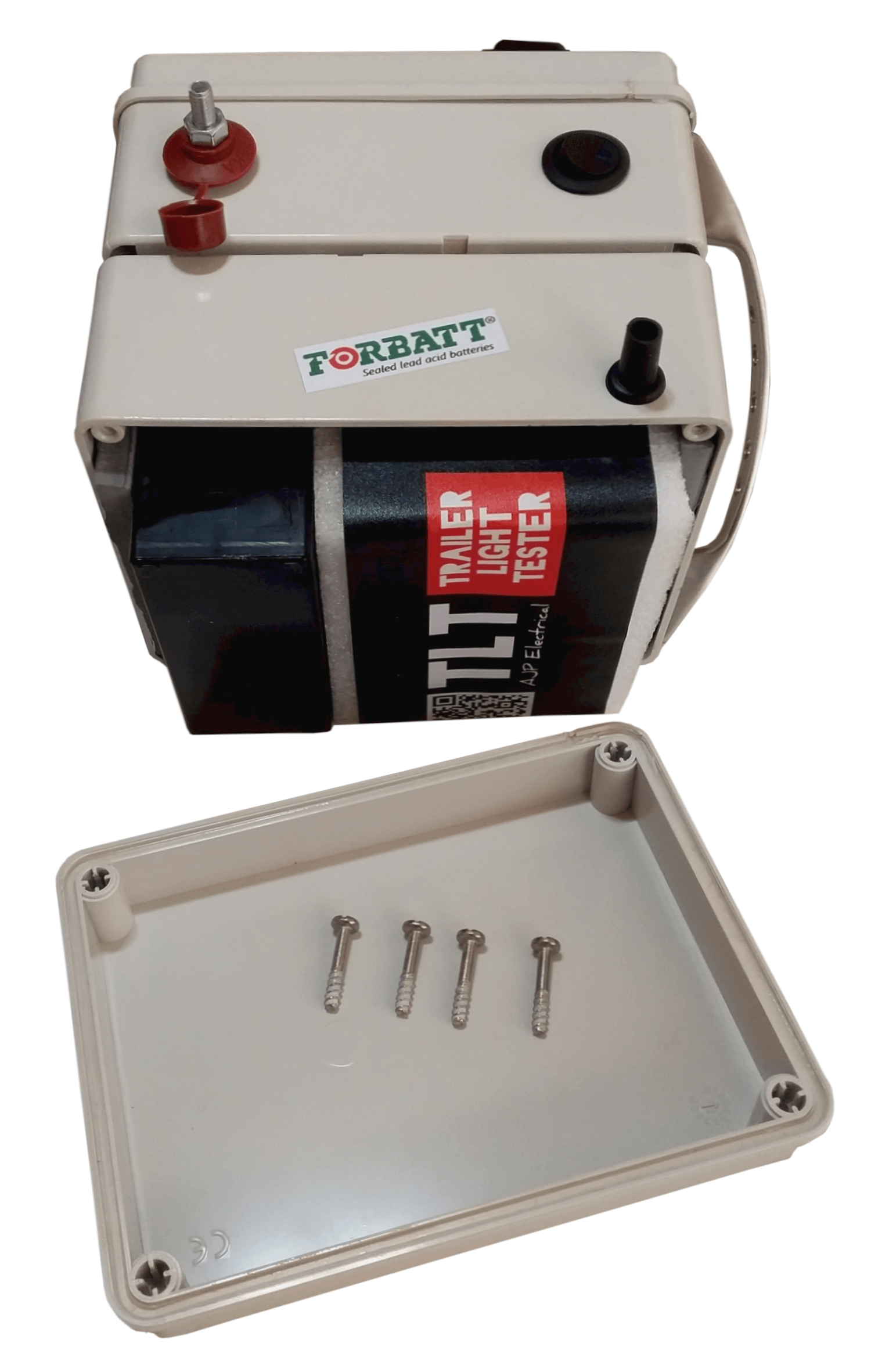

We designed the Mini Toggle (ECON) trailer light tester, a new 2025 model, to be both economical and ideal for DIY trailer or caravan owners. The professional tester is set to be replaced by this model, as LED technology, which requires less power than traditional light globes, is becoming the standard. Consequently, a high battery capacity is no longer necessary. The tester allows you to increase the battery capacity; simply add two extra 12-volt, 1.4-Ah batteries when needed. The batteries will go into the bottom enclosure. The device will work on either standard globes or LED lights, depending on what the trailer or caravan has.

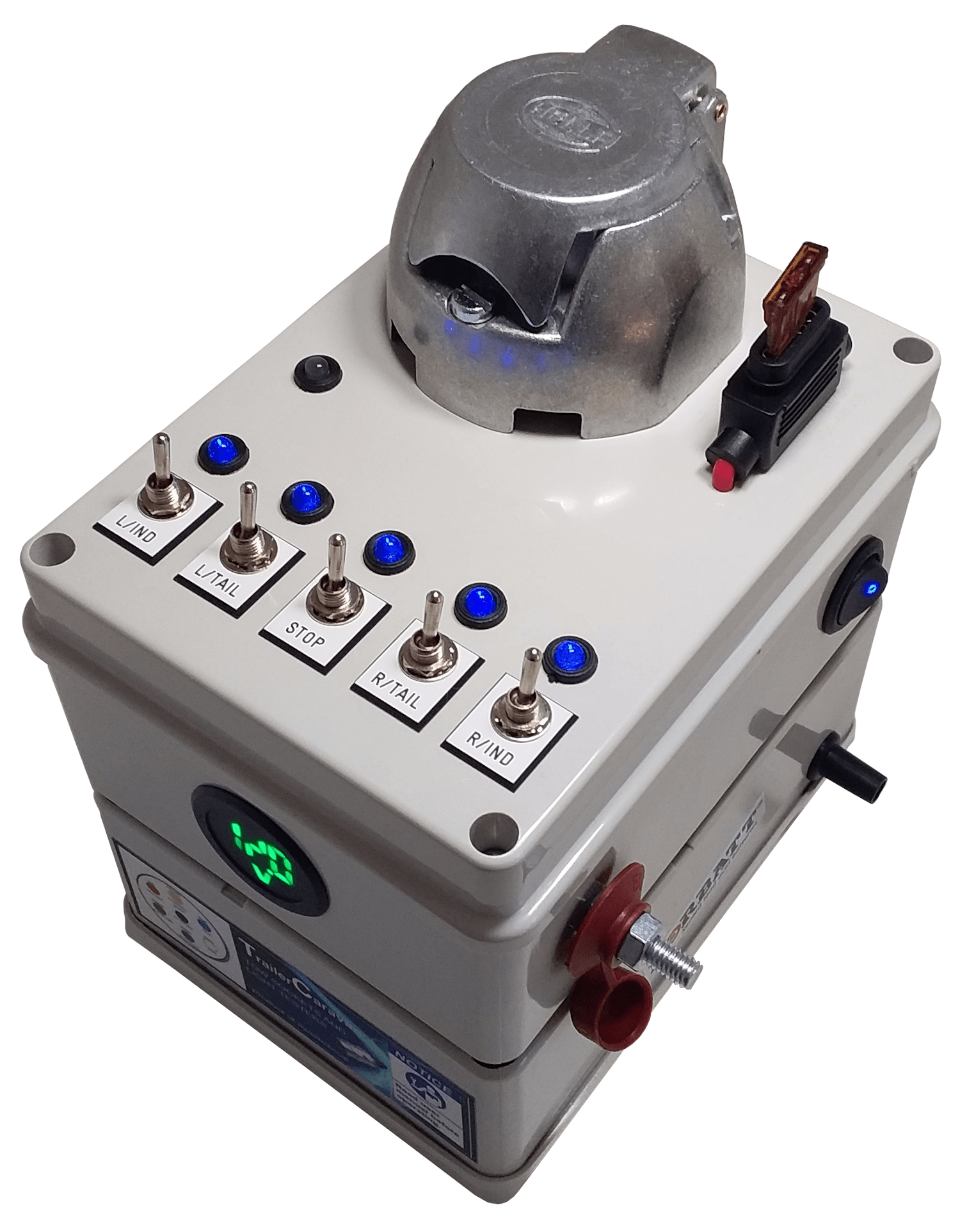

Device Features
Test the electrical tow plugs (round 7-pin), wiring, and lights for all types of trailers and caravans.
Tests are carried out through toggle switches.
Testing circuits are protected by a standard automotive blade fuse (7.5 A). The fuse holder is situated next to the trailer socket on the tester.
The 12-volt, 1.4-Ah battery is pre-installed and ready for immediate use. To ensure optimal performance, keep it charged at all times, whether you are in the workshop or on the job site. The battery is charged using a fully automatic charger.

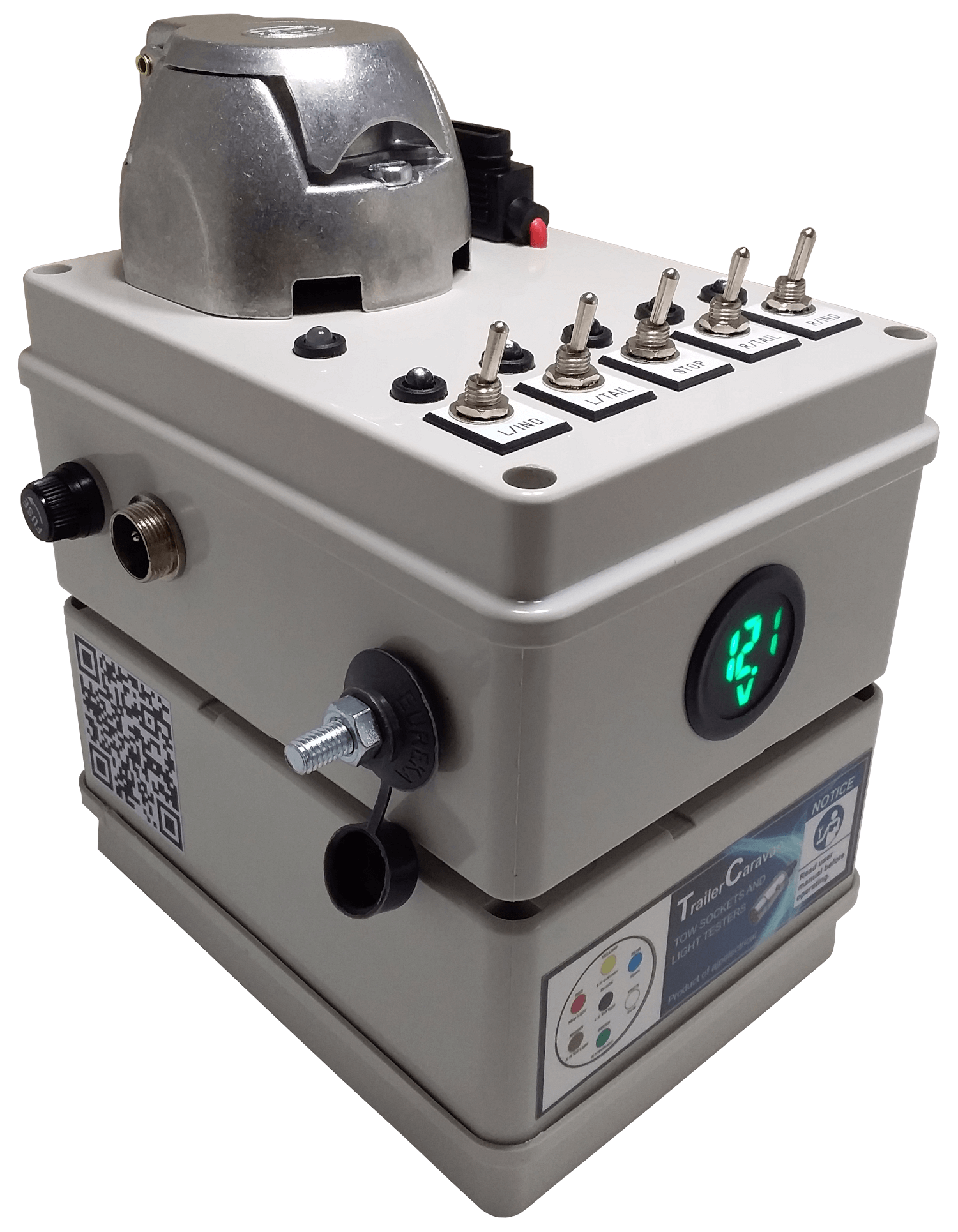

Fuse-protected output terminals (12 V) are situated on the tester's side.

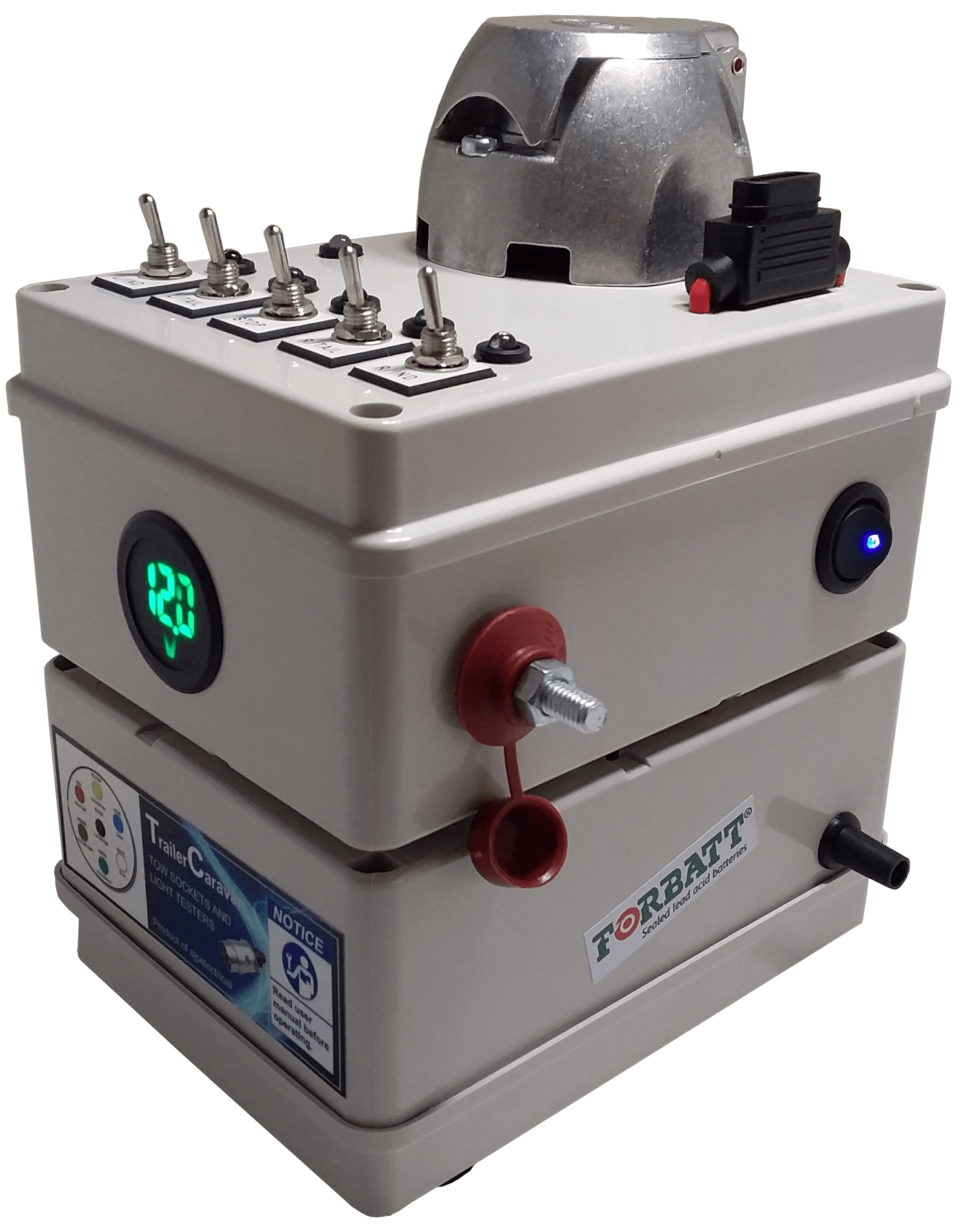

Supply power from the battery to the tester, controlled by a rocker switch through a power relay.
Reverse polarity protected and flyback voltage protected.

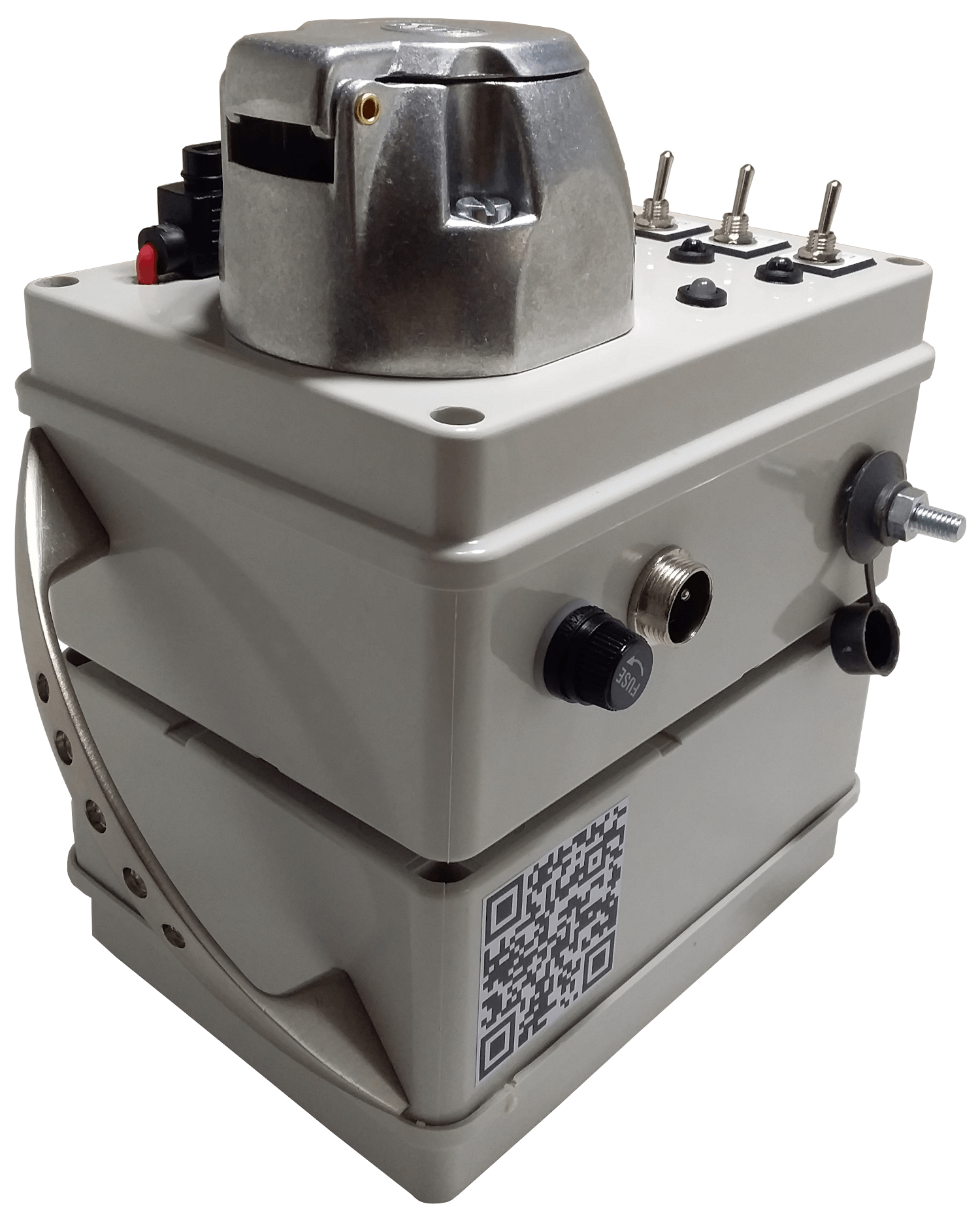

Features a rear side handle for easy carrying.
TECHNICAL SPECIFICATIONS:
Power input voltage: 12 VDC
Power output voltage: 12 VDC
Current output maximum: 30 A
Testing Features
Check the wiring circuit standard (SABS).
Check the auxiliary wire connection.
Test 12-volt and 24-volt standard light globes.
Test 12-volt and 24-volt LED lights.
Test the stop light wiring and light bulbs, or LEDs.
Test the left-hand tail light wiring and light bulbs, or LEDs.
Test the right-hand tail light wiring and light bulbs, or LEDs.
Test the left-hand indicator wiring and light bulbs, or LEDs.
Test the right-hand indicator wiring and light bulbs, or LEDs.
Perform a load test on the earth/ground wire.
Earth/ground wire test: the tester will immediately indicate when there is no earth/ground connection. It will also show a swapped earth/ground wire between light circuits or on the auxiliary circuit.
Short circuit test: the easily replaceable fuse on the tester will blow when a short circuit occurs on wires, globes, globe fittings, and damaged plugs or sockets. Refer to the user guide to learn how to safely and adequately test for shorts using this tester.

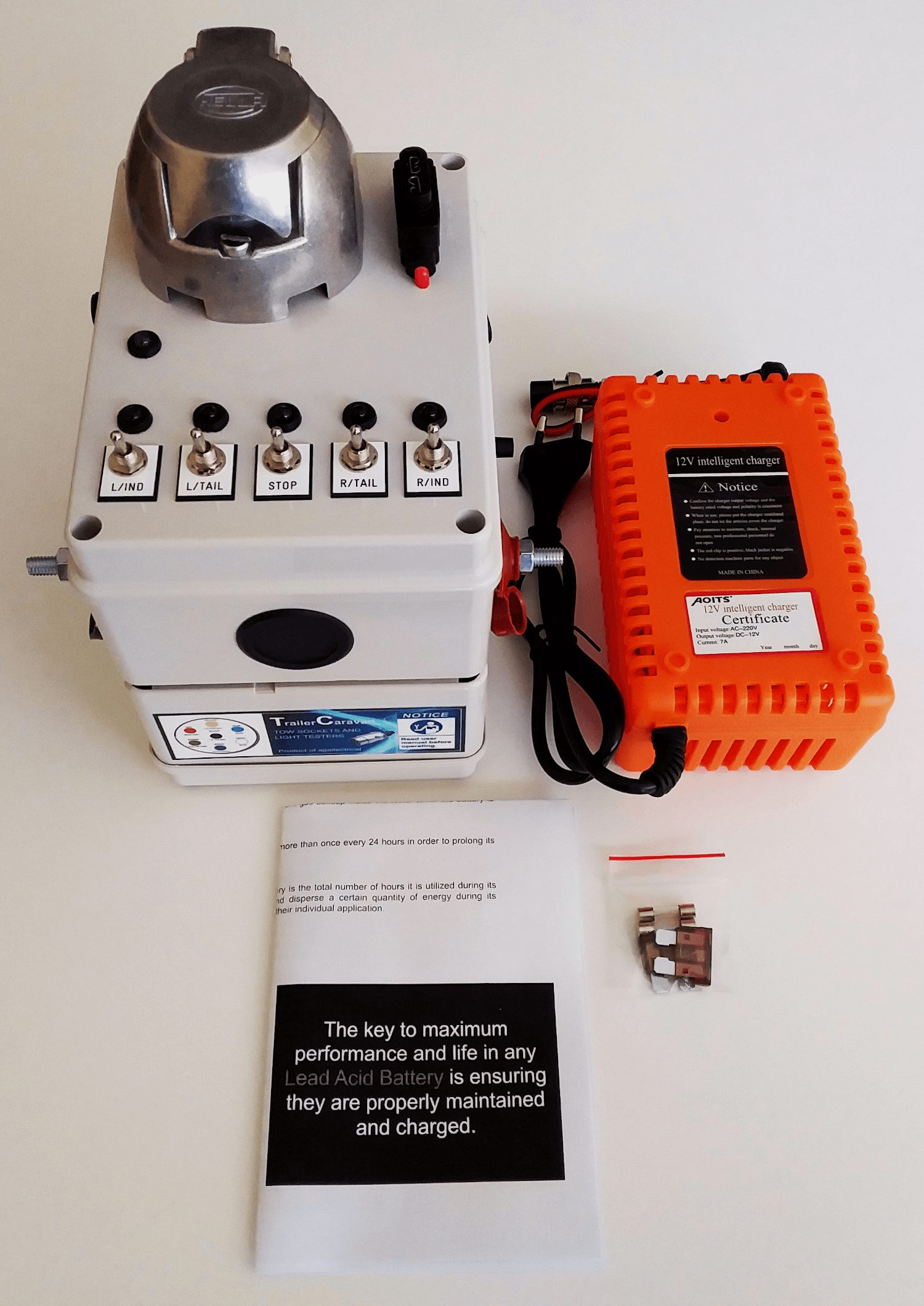

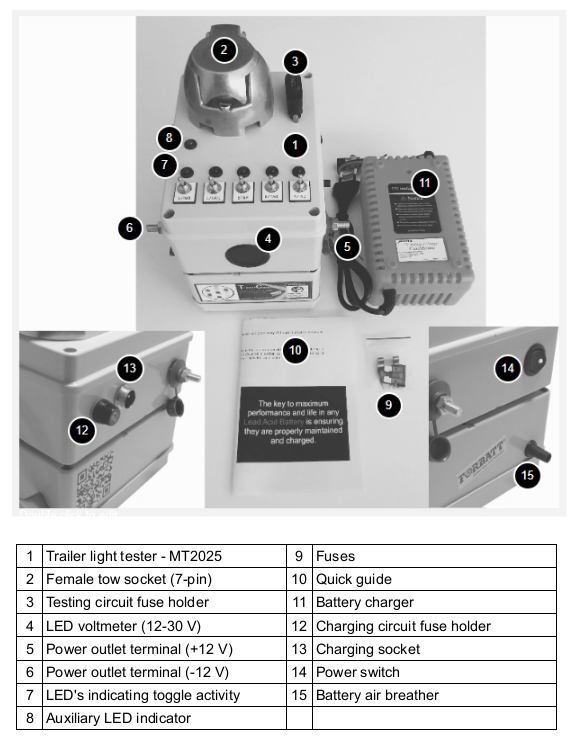

Box Contents
Mini Toggle (ECON) trailer light tester
Rechargeable battery FORBATT 12 V, 1.4 AH
Fully automatic charger (12 V, 7 A)
Fuses 7.5 ampere
Fuses 10 ampere
Quick guide
Device & Packaging Measurements
DEVICE DIMENSIONS AND WEIGHT:
Length: 180 mm
Width: 160 mm
Height: 200 mm
Weight: 1.4 kg
SHIPPING BOX DIMENSIONS AND WEIGHT:
Length: 260 mm
Width: 160 mm
Height: 250 mm
Weight: 2.5 kg
